Sherpa BASE 5.0-Extra Battery
High-capacity expansion battery for BASE 5.0 off-grid & home backup systems
The BASE 5.0-EB is a user-friendly, high-capacity Smart Expansion Battery designed to add significant energy storage to your existing BASE 5.0 system. Built for off-grid living and home backup, the easy link-up system lets you combine up to 15 units for massive energy reserves.
Built for serious, scalable off-grid power
Designed for users who need more runtime than a single unit can deliver — extended off-grid stays, whole-home backup, or demanding site power requirements.
- Adds substantial energy reserve to any BASE 5.0 system
- Ideal for extended off-grid living and power-cut backup
- Accepts significant solar and hybrid renewable input via the host unit
- Link up to 15 units for massive total storage
Long-life LiFePOâ‚„ battery technology
The BASE 5.0-EB uses an automotive-grade lithium iron phosphate (LiFePOâ‚„) battery, chosen for long service life, thermal stability and strong performance under demanding loads.
Expand your system up to 80,640Wh
Each BASE 5.0-EB adds 5048Wh of usable capacity. Link up to 15 units alongside a BASE 5.0 host and the total system reaches a massive 80,640Wh — enough for extended off-grid stays or meaningful home backup.
- Add one BASE 5.0-EB for near-double the runtime of a host-only setup
- Combine up to 15 BASE 5.0-EB units for full system scaling
- Perfect for motorhomes, caravans, off-grid cabins, work sites and home backup

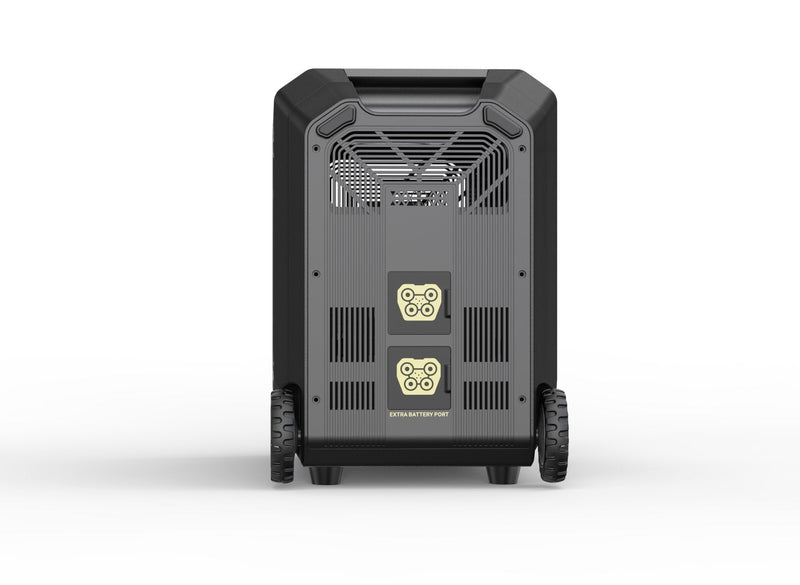

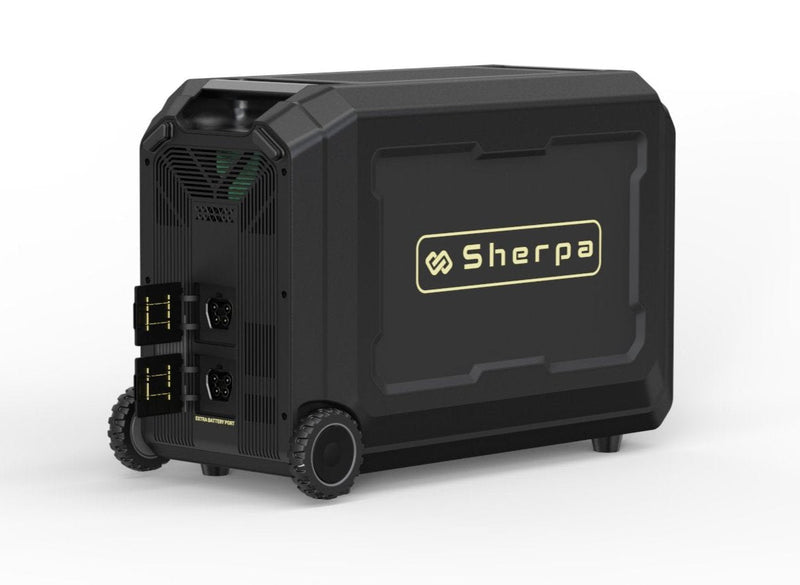

Two link ports for daisy-chain expansion
The BASE 5.0-EB has two link ports: one to connect to your BASE 5.0 host (or another EB in the chain) and one to add a further BASE 5.0-EB. Once the linked units have balanced, the system shares both charging and discharge power across all connected batteries.
- 2 × Link ports — one upstream, one downstream
- Automatic power sharing once linked units have balanced
- Charge and discharge are managed at the system level by the host
Charging
The BASE 5.0-EB only charges when linked to a BASE 5.0 host unit. Whichever charging method you use on the host — AC mains, solar, vehicle or generator — the host feeds charge to the BASE 5.0-EB through the link cable.
- AC charging (via host): approximately 3.5 hours from 0–100% when the host is connected to mains or maximum solar input
- Solar / renewable (via host): charges from the host’s MPPT controller at maximum renewable throughput
- No direct input on the EB: all charging is managed by the host unit
Built-in battery safeguards
Integrated protections help preserve battery longevity and keep operation safe throughout the charge/discharge cycle.
- Overheating protection
- Low-charge protection
- Deep-discharge limiting to preserve battery longevity
- Temperature-aware charge and discharge behaviour
Technical specification
| Product type | Smart Expansion Battery (requires BASE 5.0 host) |
| Added capacity | 5048Wh per unit |
| Battery chemistry | Automotive-grade LiFePOâ‚„ lithium iron phosphate |
| Battery life | Approx. 3,500 cycles before original capacity reduces to 80% |
| Maximum system capacity | Up to 80,640Wh with 15 BASE 5.0-EB units linked to a BASE 5.0 host |
| Link ports | 2 (upstream to host or previous EB, downstream to next EB) |
| Charging source | Only via the linked BASE 5.0 host unit |
| Charging time | Approx. 3.5 hours from 0–100% via host on AC mains or full solar input |
| Power sharing | Automatic charge and discharge balancing across linked units |
| Battery protection | Overheating, low-charge and deep-discharge protection |
What's included
- 1 Ă— BASE 5.0-EB Smart Expansion Battery
- 1 Ă— 50Â cm link cable
- 1 Ă— user manual
Please note: a BASE 5.0 host unit is not included with this item and must be purchased separately if you don’t already have one.
